Helical Bevel Servo Reducer

Different output options available.
Different mounting accessories available.
Special requests of the customers may be considered.

Bevel Gear

For Servo Motors & For AC Induction Motors
(all kinds of motor adaptors are available)
1.27kinds of types, 9kinds of size, Ratio upto 12:1
2.Backlash: Standard under 10~12arcmin,
Customized under 5~7arcmin
3.Efficiency: Over 97%

Screw Jack

Servo Motors and AC Induction Motors can all be used
(All motors adaptors are available)
Spindle Type(TP) and Nut Type( TPR)
14kinds of type
Ratio 5:1 ~ 30:1

Coupling and Others

Couplings, Torque Limiters,
Pneumatic Clutches, Stop Rings
Variable Speed Pully

Torque Limiter and Others

Made In Italian
COMINTECH

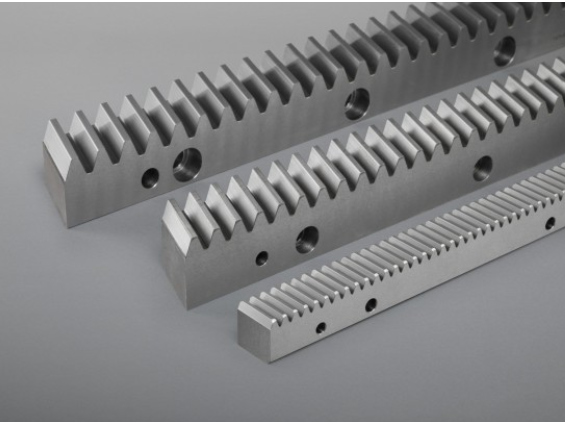

Rack Gear

Precision DIN5 ~ DIN10
Module 0.5 ~ 30, Customized racks are available
Standard 500mm/1000mm, up to 4000mm are available in Customized
Straight & Helical Teeth

felt gear

Straight & Helical
Different sizes

Dynabox

Precision Worm gearbox
Backlash: BASIC-10Arcmin, Medium-3~5Arcmin, Expert-1Arcmin
Max.Input Speed 6000rpm
Max.Output Torque 약13000Nm
Max.Fr 78000N, Max. Fa 71000N
Ratio 3.125 ~ 90:1
5kinds of Output Options

Planetary Gearbox

Precision Planetary Geabox for Servo Motors
Backlash under 12 ~ 1arcmin
Max.Input Speed 6000rpm
Max.Output Torque 약10100Nm
Max.Fr 75000N, Max. Fa 35000N
Ratio 3 ~ 220:1
4Kinds of (MRP, MNT, BDB, MRA)

Rack Gear

Helical Bevel Servo Reducer

High Precision
High Torque

Index Drive

Output: Shaft Type, Hollow shaft with flange Type
and Parallel Type
The number of could be devided : 2 ~ 72
Repeated Precision: +&-10~20arcsec이하
Available using reducer on input shaft to make higher toqrue & to make lower speed

Omni Wheel

For switching direction on conveyor
Wheel Dia 38 ~ 254mm
Allowed Load 2Kg ~ 약80Kg

Helical gear high precision planetary reducer

Versatile for all types of servomotors
High precision, low noise, and robust structural design
Total of 10 product series to choose from

RV Reducer

It has high precision (equal to or less than 1 arcmin)
High torque and high rigidity
Low noise and easy to install

Hollow Rotary Table

High precision
Easy to install

Coupling

Parts that connect shafts to rotating motors or engines
Parts that connect shafts to rotating motors or engines
Zero backlash

Lubricator

Large capacity and explosion-proof options
Quality assurance

Screw Robot

DC Servo Motor

Motor Capacity 200W ~ 1500W
Customized ones are available
Raged torque 0.64 ~ 4.78Nm
Rated speed 3000rpm
Encoder Resolution 1024p, 2500p
Communication support:
RS485(MODBUS RTU), CANopen,
EtherCAT(COE, CiA402 DRIVE PROFILE)

ENCODER (Absolute)

Single and multi-turn absolute encoders
Absolute encoders always provide the actual position data at the system power on, despite possible shaft rotations; therefore there is no need to reset to the zero point after a power down.
Stout and accurate, Elap single and multi turn absolute encoders are the ideal solution to releave motions on operating machines in all industrial fields.
The wide choice of mechanical solutions allow to fulfil any application requirement. The different available output signals and voltage supply range make it possible to interface Elap absolute rotary encoders to any counting system or PLC controller. The encoders high resolution values allow to employ them for applications needing a high accuracy degree.

DC Stepper Motor

Step Angle 2Phase 1.8°, 09°
Size 14mm ~ 1100mm
Bipolar Type and Unipolar Type
Holding Torque 0.0063Nm ~ 28Nm
Ambient Temperature -20°C ~ +50°C

ENCODER (Incremental)

Incremental encoders are rotary transducers used to releave length or thickness measures, angles and speed. Incremental encoders are commonly employed on industrial operating machines, combined to counting, visualizing or control systems, to achieve programmed positionings, preset step shifts or simply to display measures of physical magnitudes.
Thanks to the innovative electronic circuitry and the excellent quality of the components, Elap encoders ensure high resolution, great accuracy and repeatability.
The wide choice of mechanical and electronic solutions allows to meet all application requirements.

DC Stepper Servo Motor

OPEN LOOP & CLOSED LOOP
OPEN LOOP 2phase size 28 ~ 86
CLOSED LOOP 2phase size 42~86, 3phase 86,110,130
Communications supporting:
RS485(MODBUS RTU), CANopen, EtherCAT(COE, CiA402 DRIVE PROFILE)

DC Servo Motor & Drives

DC Power Moller

Dia 38 ~ 216mm
Customized Developments Expert
Input voltage DC24V, DC48V(DC72V development possible)
Speed/Length of moller: Customized
Built-in gearbox using(High speed moller without gearbox available)
Taper type roller is available for curve course

Single-axis robot

Linear Actuator

High thrust, low noise, wear resistance, strong locking force, high compressive strength, Life for a long time
Strong structure, high precision, the controller can control a number of actuator synchronous operation, Going up and going down at the same time
Durable, front end joint, a variety of fixed methods for connection

SENSOR

Available in five different configurations for fixing and dimensions. Housing and shaft can be customized to different values

BLDC Motor

Capacity 50W ~ 3000W
Rated Speed 3000rpm( 2000W,3000W - 2000rpm)
Rated Torque 0.16 ~ 9.55Nm
Ambient Temperature -20 ~ +50°C

Linear Servoactuator

BLDC Motor Driver

Input Voltage 8VDC ~ 60VDC
Allowed Motor Capacity 80W ~ 1200W
Output Current 3A ~ 20A

Step Motor Driver

Input Voltage 24 ~ 48VDC
Output current 0.1 ~ 5.6A
Resolution 200 ~ 51200p

STEP Motor CLOSED LOOP Driver

Input Voltage 24 ~ 48VDC
Output current 2 ~ 5A
Resolution 200 ~ 51200p

ENCODER (Absolute)

The maximum speed of the Modbus TCP/IP bus is 10/100 Mbit.
The single revolution resolution is up to 18 bits and the multiple revolution count is up to 14 bits.
The LED status indication has anti-short circuit and short circuit protection, which effectively reduces the impact of installation errors on the encoder.

ENCODER (Incremental)

5kinds of types
A,B,Z phase, Line Driver
Ambient Temperature -40~+80도
Input Voltage DC 5V+/-5%
Resolution 50~3600p

MICRO BLDC Motor & Driver

Dia. of motors 12~40mm
Capacity of Motors 2W ~ 130W
Output torque 1.5mNm ~ 200mNm
Max. speed 15000 ~ 50000rpm
Built-in Speed Controller available
Built-in gearbox available

Connector

M-Series Clamping type
Distribution box
Industry cable(Ethernet, EtherCAT…)

TOF LIDAR

고화질을 갖춘 Fusion LIDAR/ 가성비
HD 고화질 및 비용 효율성
12m 반경 범위 및 다루기 쉬운 다양한 물체 범위 측정 과제
크기가 작고 통합이 용이함

Robot Base

High configuration lidar sensor
High configuration lidar sensor
Multi-sensor Fusion
Autonomous Recharging
Cloud-based Remote Management
Application Development

PLC

Fully small-scale device and demand control device
A complete set of small-scale devices with the required functionality
The demand for visibility in the production situation
There are 3 types of models, suitable for installation equipment, ideal machine type.
For EtherCAT in-house type CPU communication and communication control system
More compact equipment and more variety • Demand for information advancement

Motion Control board

This product is currently being updated.
If you have any questions about the product or require detailed information, please contact us.

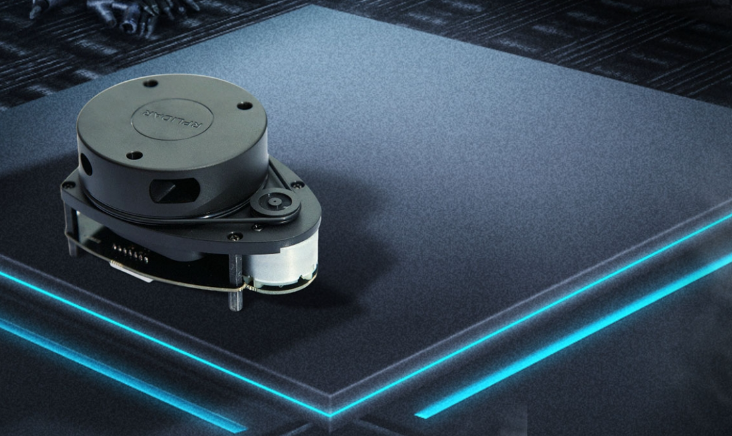

Triangulation LIDAR

The sample rate of LIDAR directly decides whether the robot can map quickly and accurately.
With algorithm optimization, RPLIDAR A3 improves the range radius up to 25 meters, which will collect more environmental data due to a larger outline map.
The RPLIDAR A3 has the ability to operate simultaneously in two modes: enhanced mode and outdoor mode.
In enhanced mode, the RPLIDAR A3 uses its maximum ranging radius and sampling rate to achieve optimal mapping performance in indoor conditions.

Automotive PMDC motors

High torque and efficient
Low noise
Multiple control methods

Spur Gear Motor

The parameters and the output shaft of gear box can be customized.
Transmission shaft size can be customized;

Transducers

Incremental linear transducers are usually employed on industrial operating machines. Combined to counting, visualizing and control systems they allow to achieve programmed positionings, pre-determined step shifts and to display length or thickness measures.

Linear potentiometers

Linear potentiometers

Widely employed on industrial operating machines, linear motion potentiometers are specially designed to measure and control linear displacements in absolute mode

LINEAR MODULES

Diversified products can be matched and needed to be selected.
Driving mode: ball screw.
Motor output: servo motor or stepping motor can be selected.
Motor connection: direct, upper connection, lower connection, left connection and right connection, depending on the use space.
Effective travel: 50~1600mm (limited by screw speed). Easy to assemble and maintain.
According to customers' needs, we can make customized, single-piece or combined special design and manufacture.
Single axis can be combined into multiple axes.
