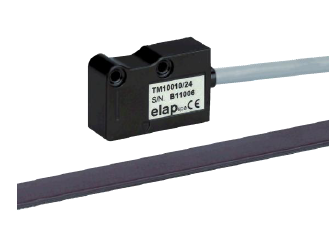

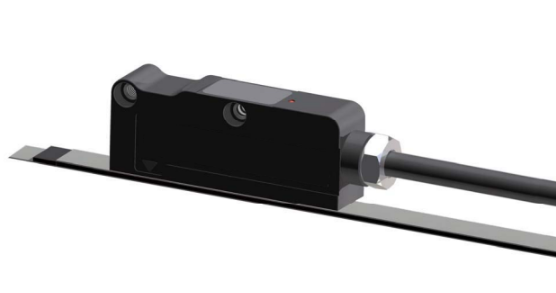

SSI통신 리니어 엔코더(linear Encoder )

• Magnetic sensor, with direct reading of the absolute postion.
• Resolutions up to 1 pm .
• Measuring length up to 30 poo mm.

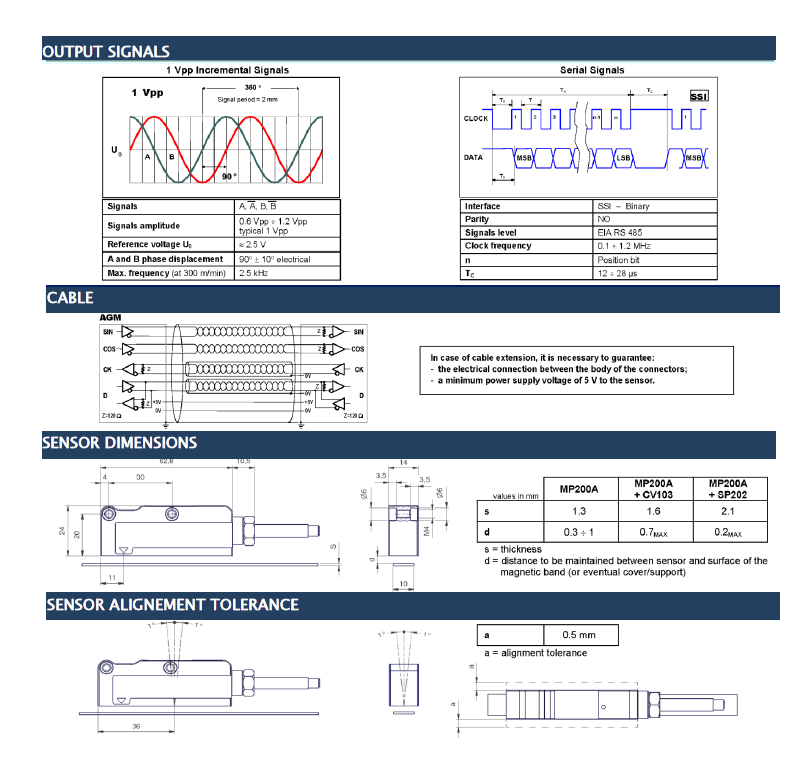

• High - speed serial interface.
• Contactless reading.
• Waming indication through LED.
• Extremely easy and fast mounting of the entire measuring system, with wide alignment tolerances.
• Small size, to allow installation in narrow spaces.




리니어 엔코더 메뉴얼이 필요하신 경우, 전화 또는 이메일로 요청해 주시면 발송해 드립니다. :)

SSI통신엔코더 기술자료링크입니다, 많은참조부탁드립니다


앱솔루트엔코더 SSI통신 리니어엔코더 : 네이버 블로그


리니어엔코더선정 기술자료입니다. 많은참조부탁드립니다.


리니어엔코더 선정, 이태리 ELAP사의 리니어.. : 네이버블로그

다음제품이 없습니다.
MEM520 엔코더
