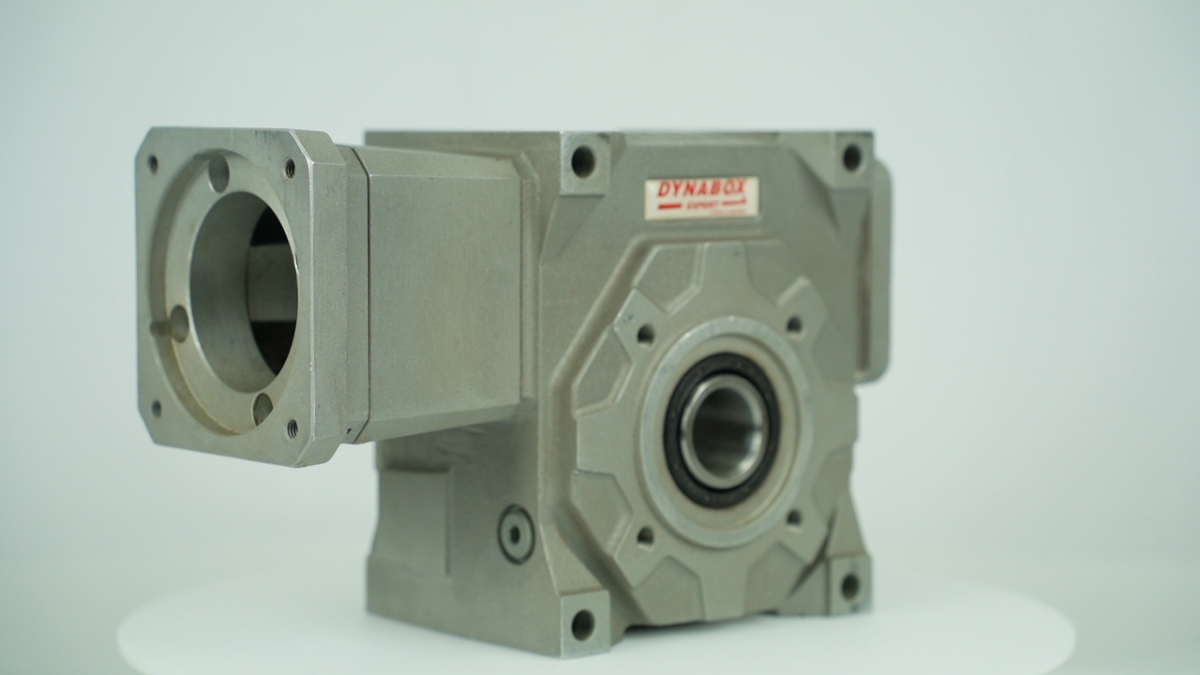

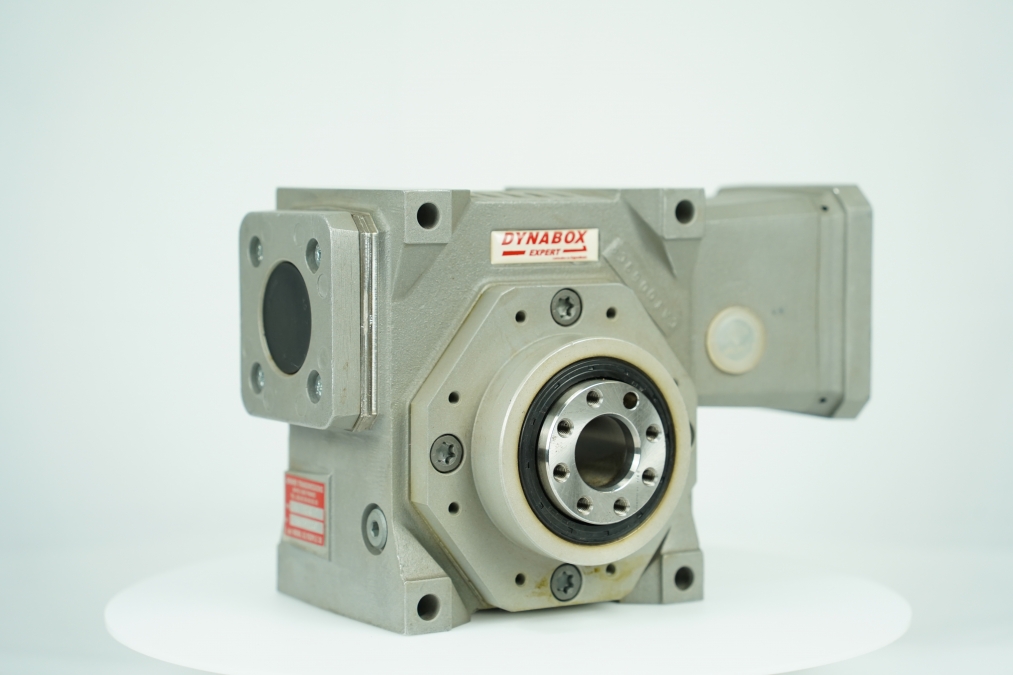

Precision Worm Gearbox

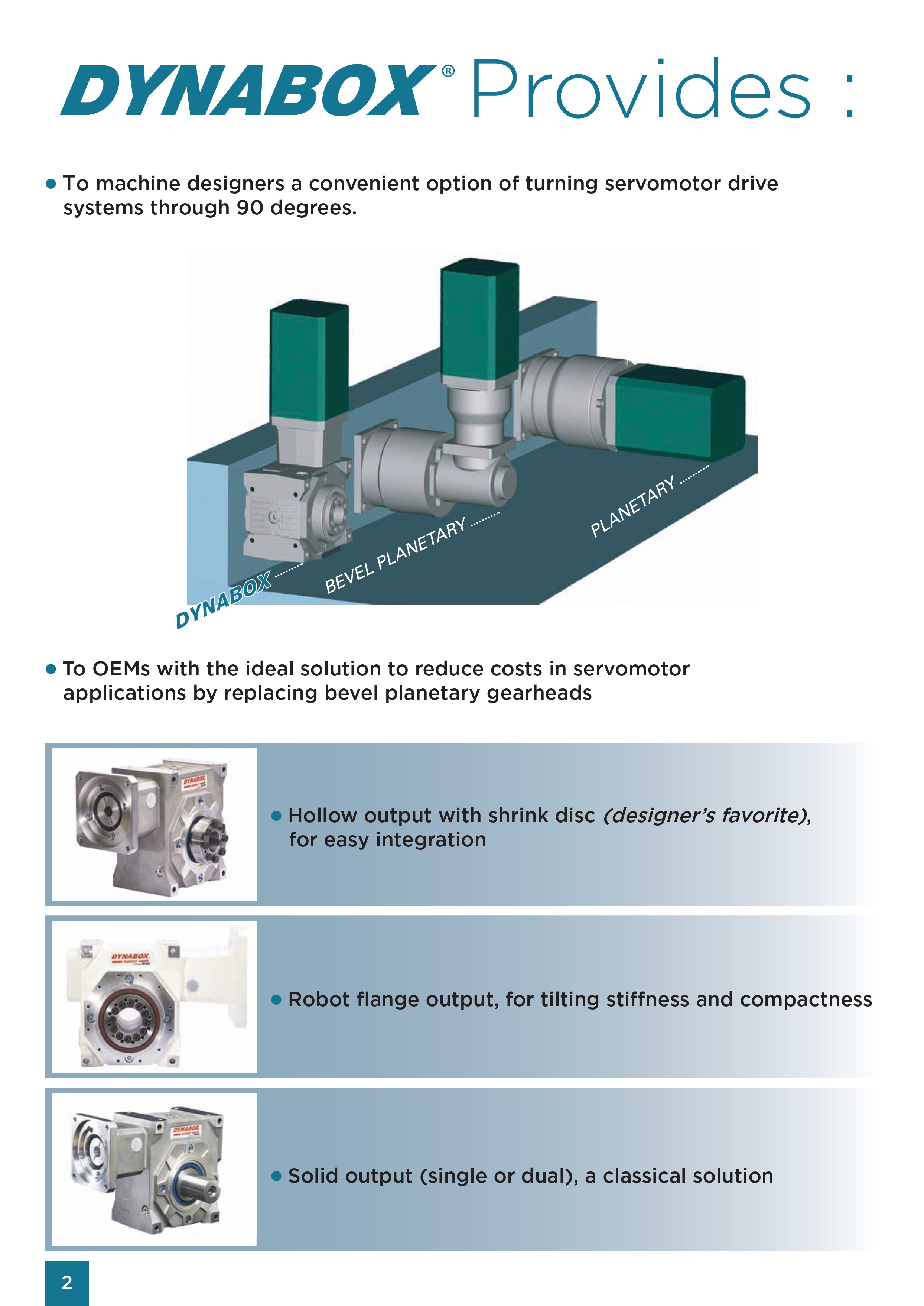

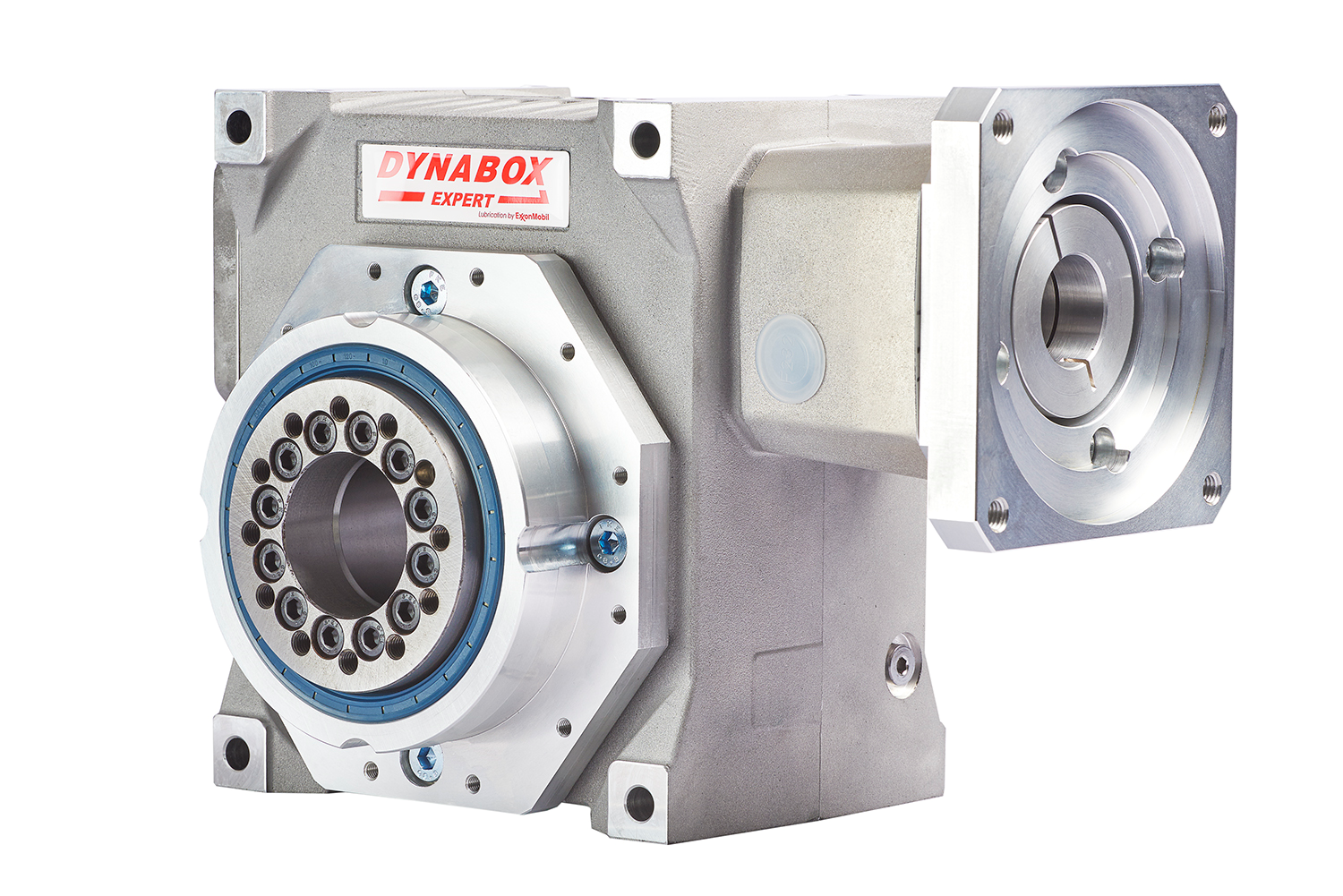

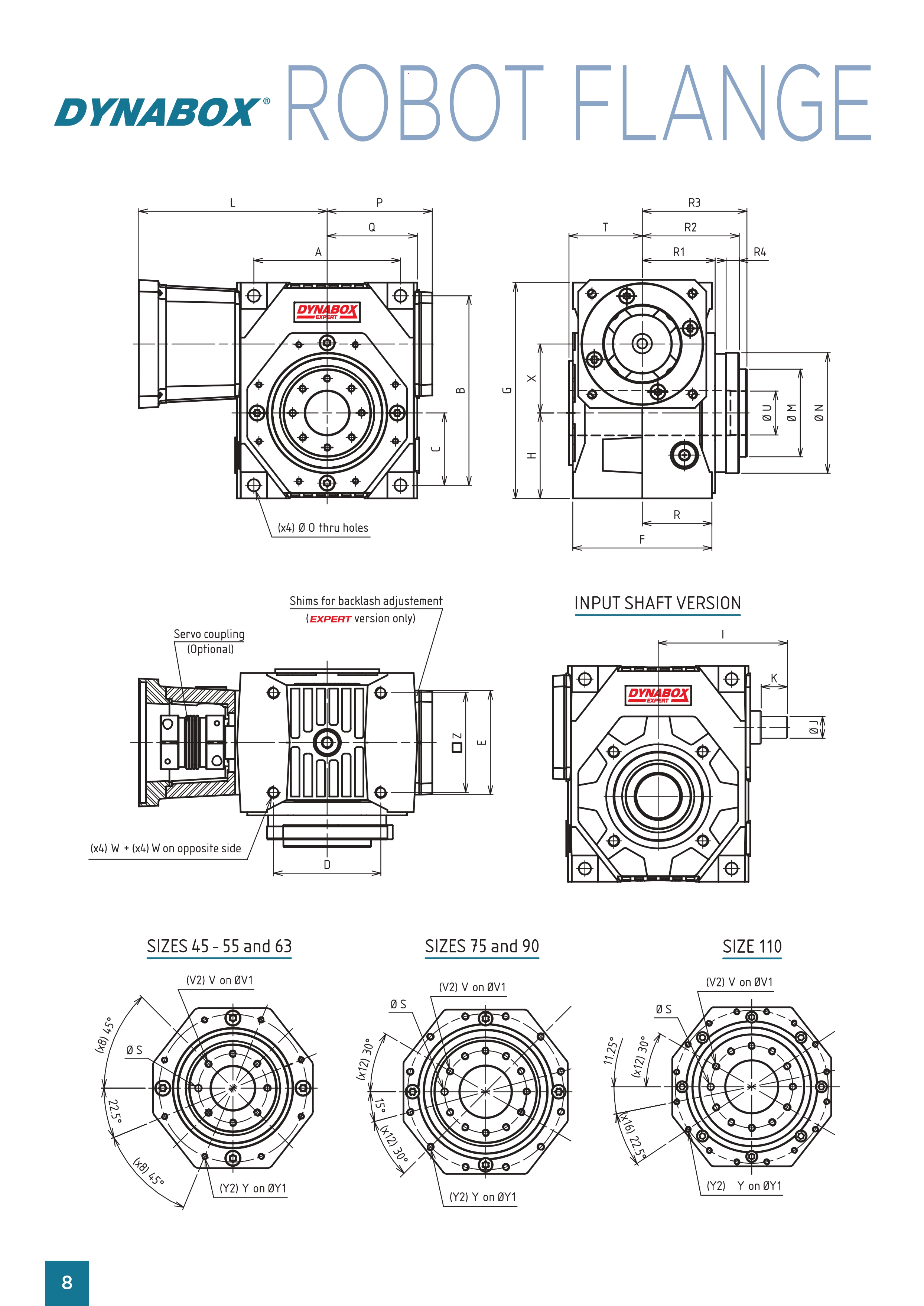

Robot Flange

Backlash : ㅤBasic 10 Arcmin
ㅤ ㅤ ㅤ ㅤ ㅤMedium 3~5 Arcmin ㅤ
ㅤ ㅤ ㅤ ㅤ ㅤExpert 1 Arcmin
Max. Input Speed (rpm) : 6000
Max. Output Torque (N·m) : 13000
Max. Fr (N) : 78000
Max. Fa (N) : 71000
Ratio : 3.125 ~ 90:1
In/Output Options : 5
Origin : Girard Transmission (France)
For more Information, please click the Manual Box below.

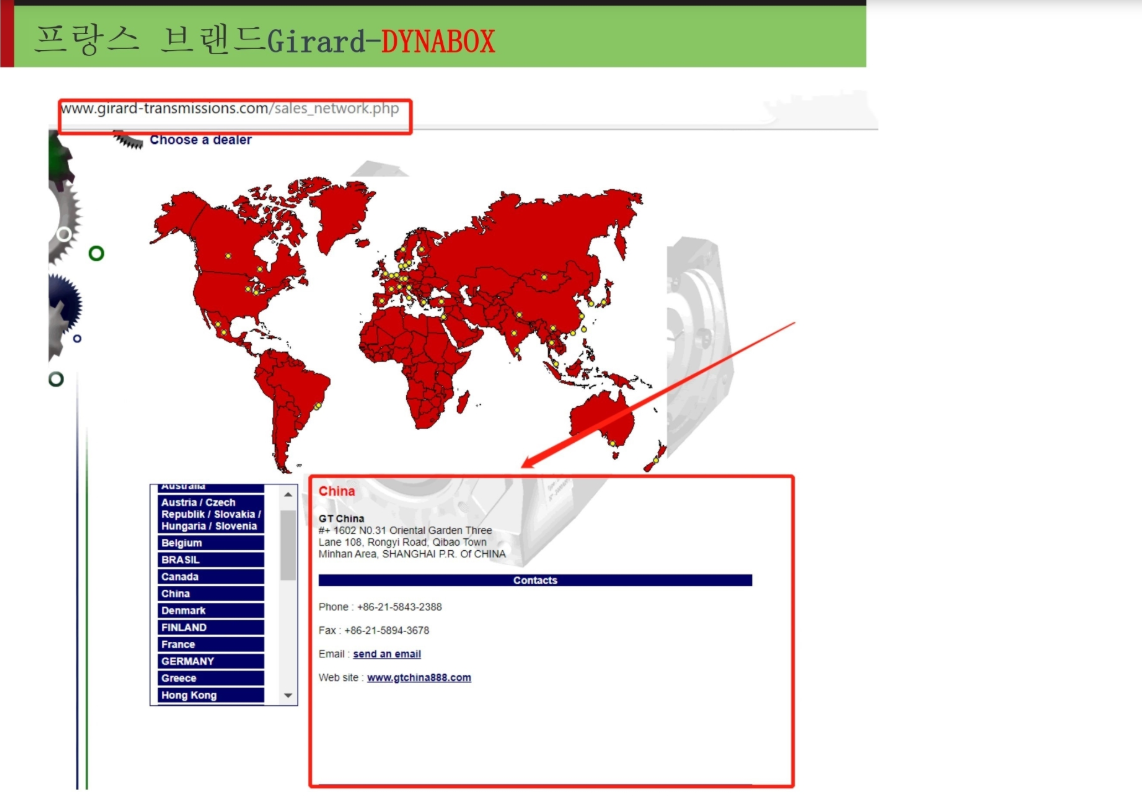

                                                                                                                    GTCHINA is the official distributor of Girard in China,

                                                                          and GTKOREA holds the exclusive distribution rights in Korea.

                                                     In particular, for high-precision gearboxes for servo motors manufactured in Europe,

                                    DYNABOX products offer prices comparable to imitation products from Japan, Korea, China, and Taiwan,

                                                       while delivering superior quality and outstanding competitiveness.

                                                                                               French Brand Girard – DYNABOX

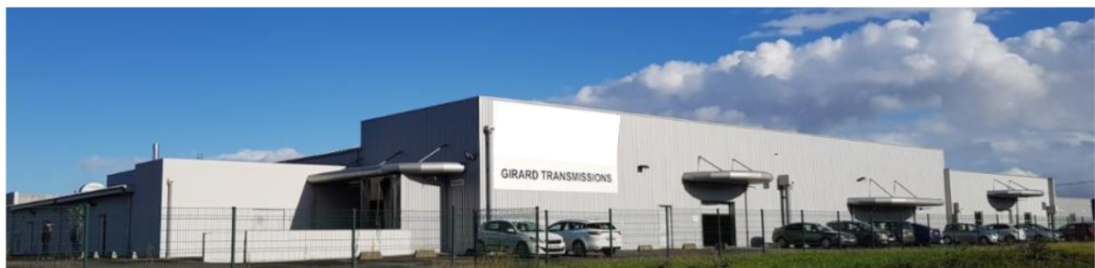

Girard Transmissions, founded in the early 1960s, is one of Europe’s leading companies in the field of precision helical gears, located in southwestern France. Based on many years of extensive experience, Girard has developed products for servo applications, including the BR Series.
Girard gear products are recognized worldwide as a trusted premium brand across various industries due to their outstanding quality.

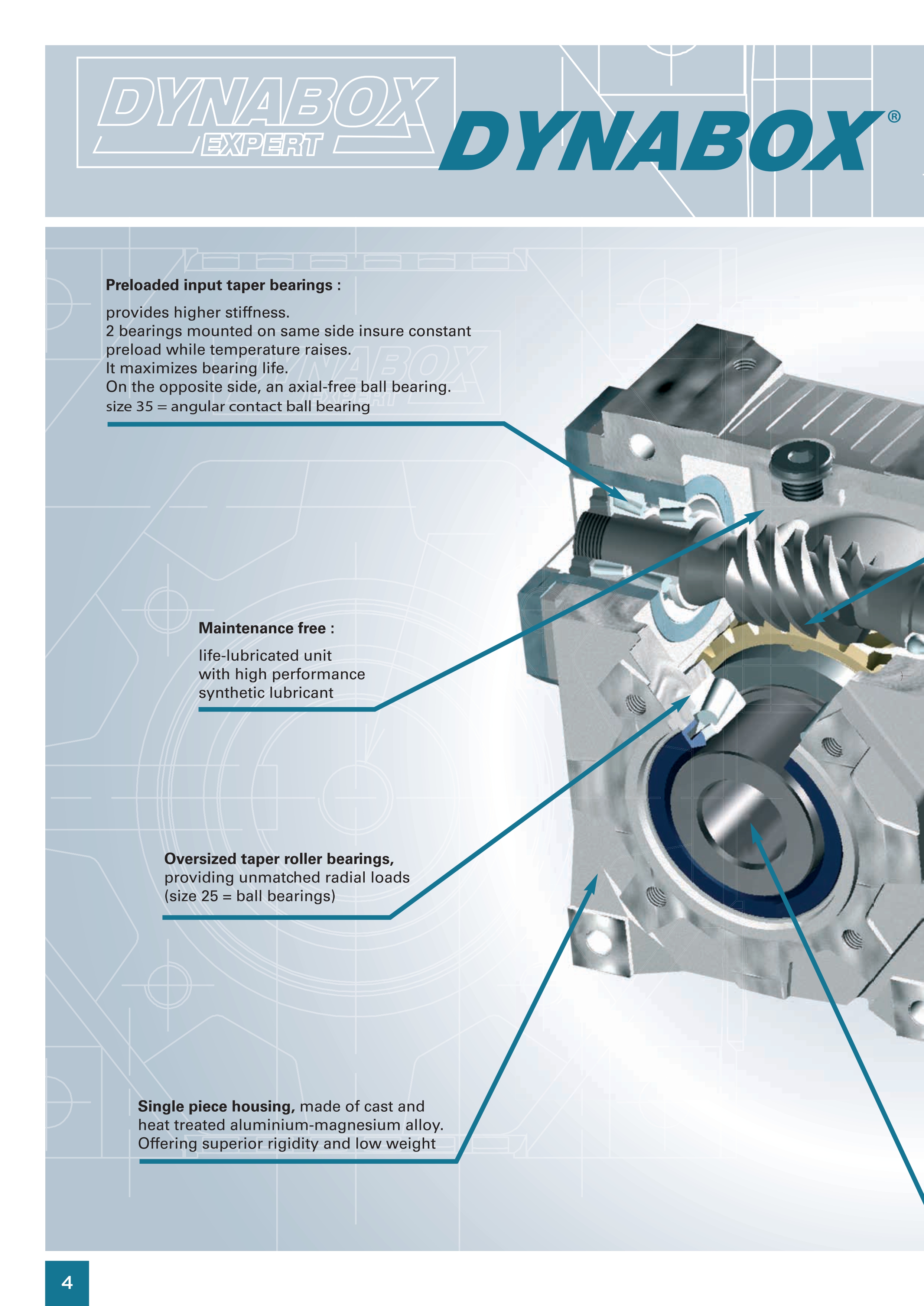

The products are designed in a rectangular shape for easy installation and assembly. The mounting surfaces are precision-machined to improve adhesion and minimize vibration.
Aluminum and magnesium alloys are used for the exterior materials, making the products lightweight with excellent heat conductivity. High-performance lubricants are applied, eliminating the need for replacement or maintenance.

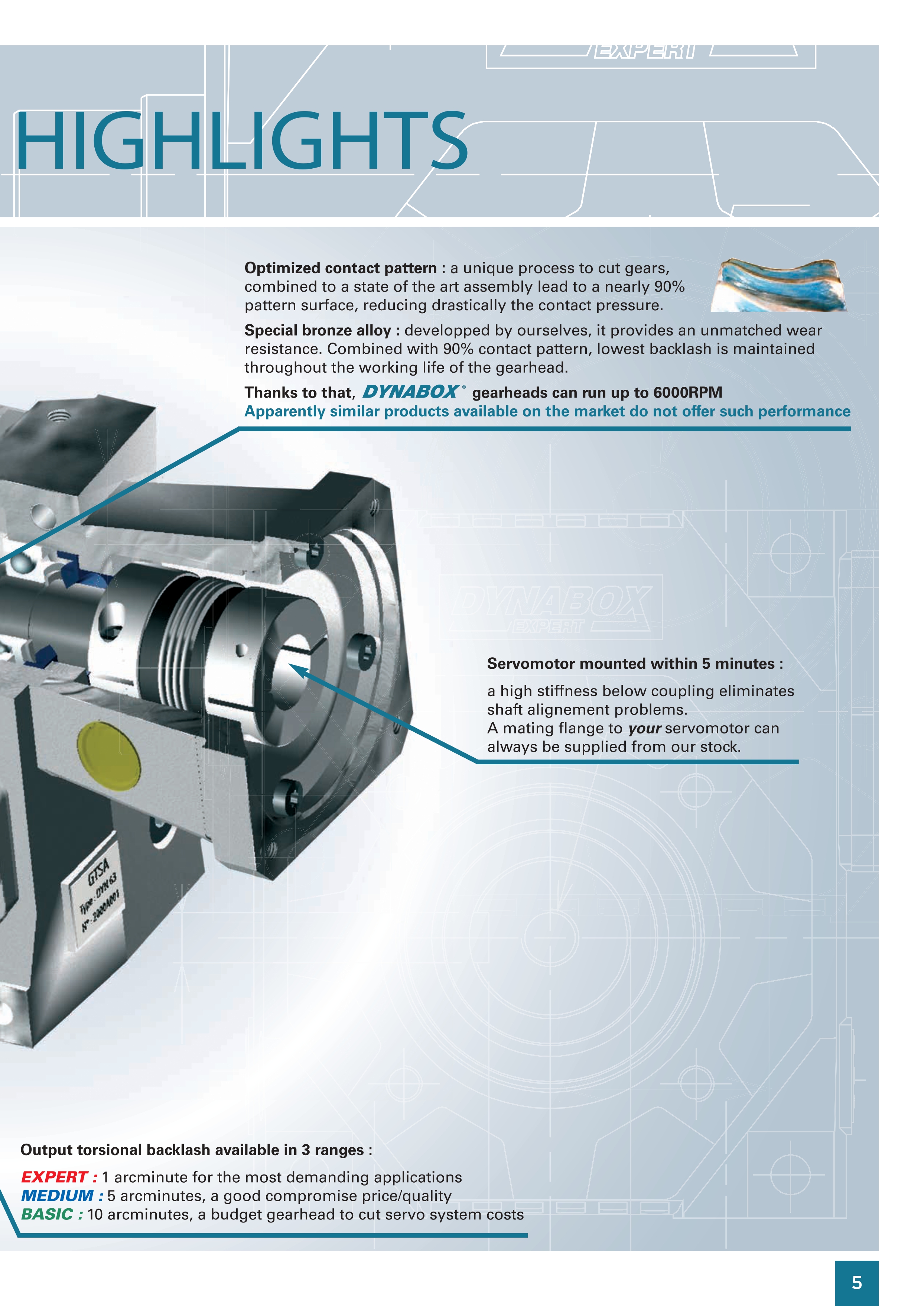

The products feature a dual-thread design, providing high torque, high rigidity, low noise, low vibration, low backlash, and easy backlash adjustment.






This is a link to technical materials for precision worm reducer. Please refer to it a lot.
